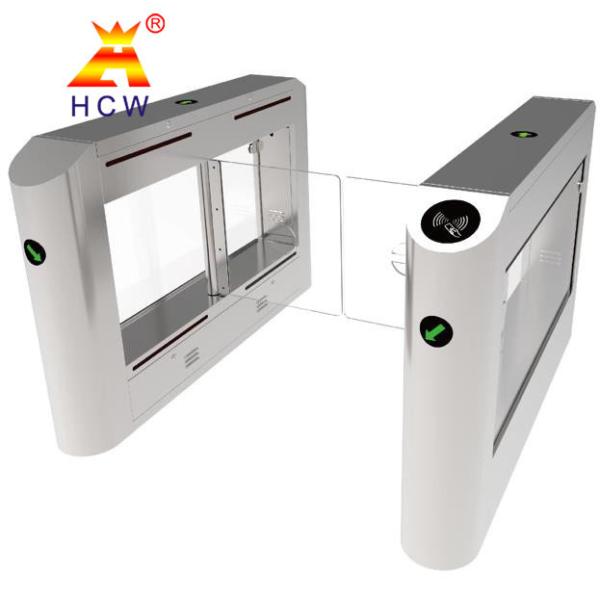

Stainless steel pedestrian passage brushless swing turnstile gate
product description
The anti-collision swing gate is specially developed by our company for the venues that require a wide passage and a beautiful appearance.
Support verification of QR code, fingerprint, face, credit card, induction, normally open and other access methods
304 stainless steel material is selected, and the movement structure produced by advanced technology ensures the reliability of long-term operation.
Can be widely used in residential areas, schools, office buildings, gymnasiums and other places
Features
Powerful and stable control core
It adopts advanced non-destructive movement structure and is equipped with high-quality brushless DC motor to achieve precise control, stable operation and long service life.
The average trouble-free operating cycle is more than 5 million times
Support advanced infrared anti-pinch, mechanical anti-pinch double intelligent anti-pinch technology, comprehensive protection of pedestrian safety
1.The electric control adopts DC motor to drive stable and reliable, and has low failure rate. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;
2.In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.
3.The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.
4.Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.
5.The bicycle delay function: prevent the gate from hitting the bicycle;
6.Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people.
7.The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way credit card and free pass.
8.Various control functions: external button, remote control, bar code, IC or ID, etc.
9.Remote control function: the RS485 can be connected to RS485 by computer and the RS485 remote control brake machine.
10.Automatic reset function: after the credit card has not passed in the specified time, the lock will return the lock to cancel the pass, time 1-60 seconds.
| Channel width | 600mm-1100mm |
| Swing arm length outside the chassis | ≤51cm |
| Opening speed | 0.5 seconds |
| Number of people passing | 40 people/minute |
| Working environment | -40°C~80°C |
| Relative humidity | ≤90%, no condensation |
| Gate opening signal | relay |
| Cabinet material | 304 stainless steel |
| Box thickness | 1.5mm |
| Drive current | >10mA |
